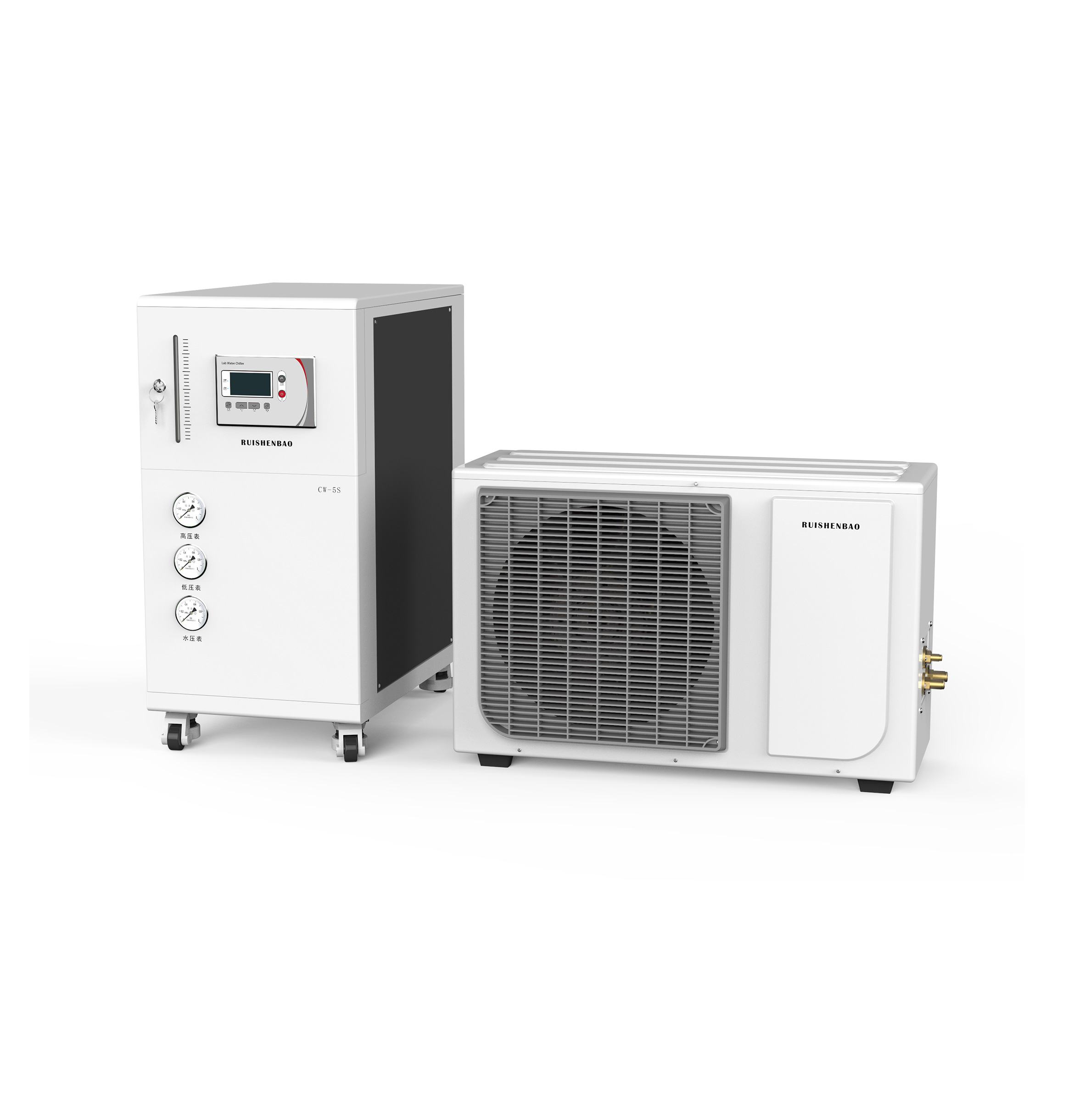

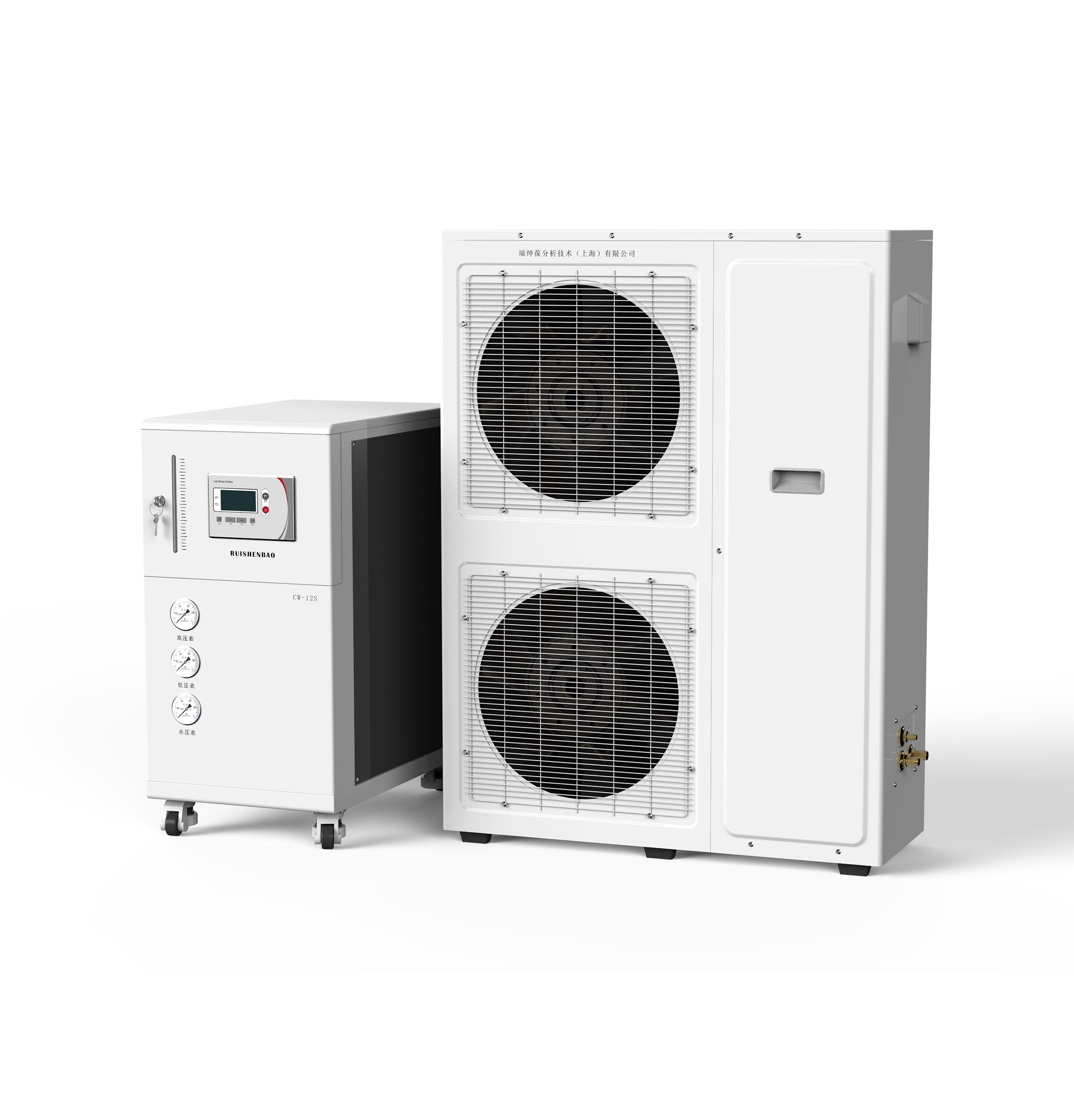

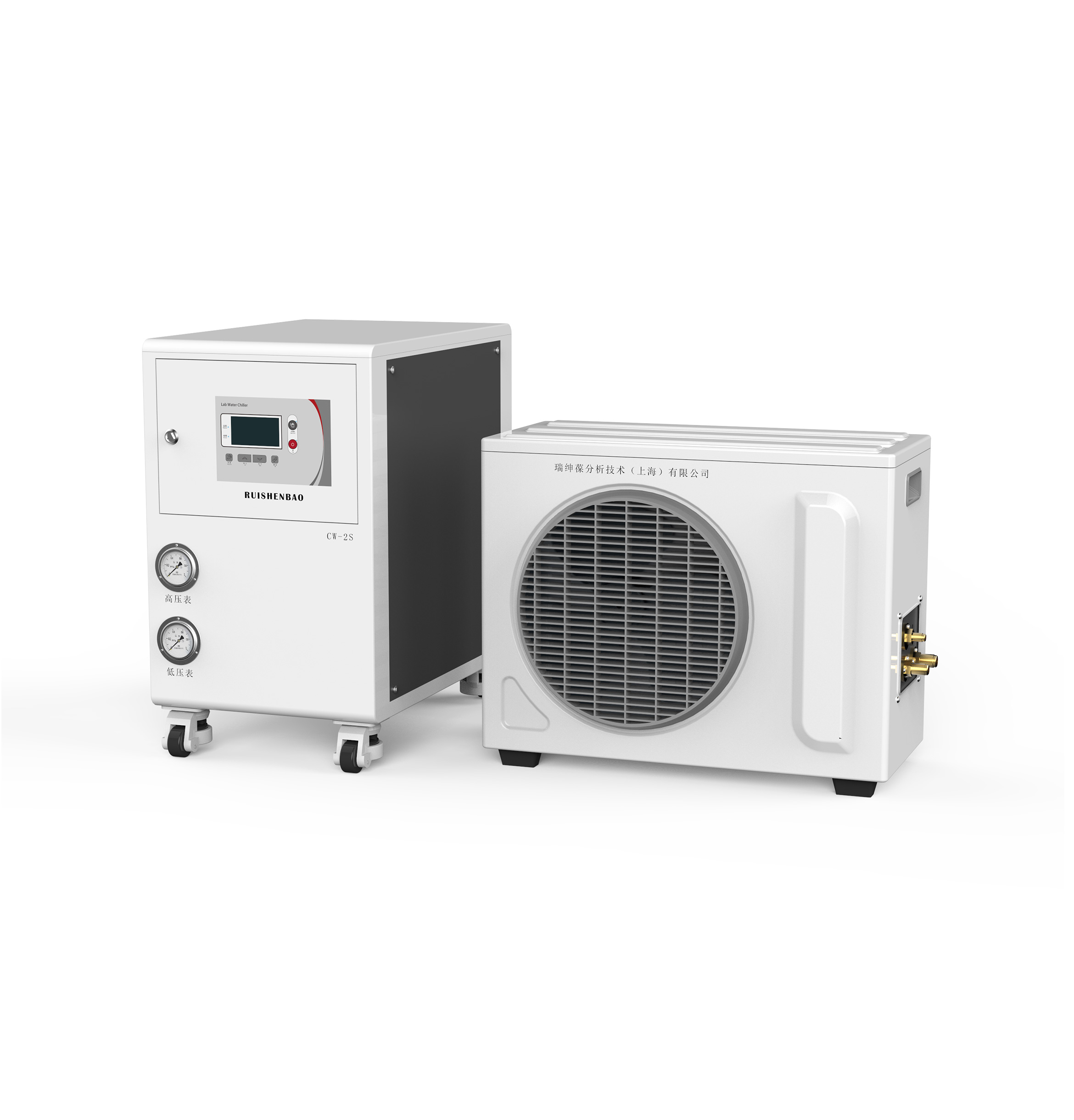

Divided Air-cooling Chiller

?CW series high-precision circulating water chiller, developed by Ruishenbao Analytical (Shanghai) Co., Ltd., is an auxiliary cooling device for analysis equipment in different models of divided chillers, integrated chillers, air-cooling chillers and water-cooling chillers. As to S series divided air-cooling chiller, it adopts high-end accessories for its operating system including water circulation system, refrigeration system, electrical control system, and high temperature alarm system, as well as imported electronic control components and high-performance compressors. The maximum temperature control accuracy can reach ± 0.1℃, guaranteeing long-term stable operation of the host analysis equipment. Advantage

Ultra silent design, low impact on working environment;

Imported high-efficiency compressor to improve refrigeration efficiency;

Excellent temperature control accuracy in the industry, up to ± 0.1 °C;

High-precision controller to directly reflect the equipment operation and failure;

Complete categories: Divided or integrated or air-cooling or water-cooling chillers for selection;

Unique dust filter design to protect compressors without need to control cleanness;

Tested in the simulated actual use in the factory, and qualified before shipment.

Ethylene glycol solution can be used as coolant. The outlet temperature of freezing water can be as low as 5 °C;

The compressor automatically returns oil, and the installation of the outdoor machine of the divided-structure chiller can be higher than that of the indoor machine;

Imported high-efficiency vortex flexible compressor with low failure rate to ensure long-time stability and uninterrupted operation.


Security
■ Application area

?At present, RUISHENBAO water chillers are widely used in laboratories in various industries such as medicine, chemicals, chemical fiber, food, electronics, batteries, glass, rubber, cigarettes, textiles, scientific research, aviation and military engineering. It can be the auxiliary device for a number of equipment, such as X-ray fluorescence spectrometer (XRF), X-ray diffraction spectrometer (XRD), X-ray photoelectron spectrometer (XPS), atomic absorption spectrometer (AAS), plasma spectrometer (ICP), plasma mass spectrometer (ICP-MS), electron probe Analyzer (EPMA), SEM, TEM, NMR, vacuum die plating machine, material fatigue tester, ion beam epitaxial device(IBE), molecular beam epitaxial device (MBE), MOCVD, high-power laser, plasma etching machine, high-power vacuum brazing furnace.

■ Technical parameter

Item

Divided Air-cooling Type

Model

CW-2S

CW-5S

CW-8S

CW-12S

CW-18S

CW-25S

Cooling Capacity

2kw*

5kw*

8kw*

12kw*

18kw*

25kw*

Power Supply

1-phase
AC220V±10%,

50Hz

AC 380V±10%,25A,50Hz 3- phase or AC 220V±10%,32A,50Hz 1- phase

AC 380V,
25A,50Hz 3- phase
or AC 220V,
32A,50Hz 1- phase

AC380V±10%,50Hz,3- phase

Temperature range

10~35℃

5~35℃

Control accuracy

±2℃/±1℃/±0.5℃

±0.1℃/±0.5℃

±0.1℃/±0.5℃

±2℃/±1℃

±2℃/±1℃

±2℃/±1℃

Water flow

4-25L/min

3-25 L/min

10-110 L/min

Hydraulic pressure

0.1-0.55MPa

0.1~0.45MPa

0.1-0.55MPa

Refrigerant

R22

Power

1.6kw

2.4kw

3.8kw

5.9kw

6.8kw

11kw

Tank volume

70L

140L

Indoor unit (mm)

620×400×600

700×440×830

800×500×900

Outside unit (mm)

660×300×500

870×320×545

940×420×790

950×360×1250

Note * : The standard cooling capacity is the cooling power at the outdoor ambient temperature of 20℃ and the water supply temperature of 20℃.
