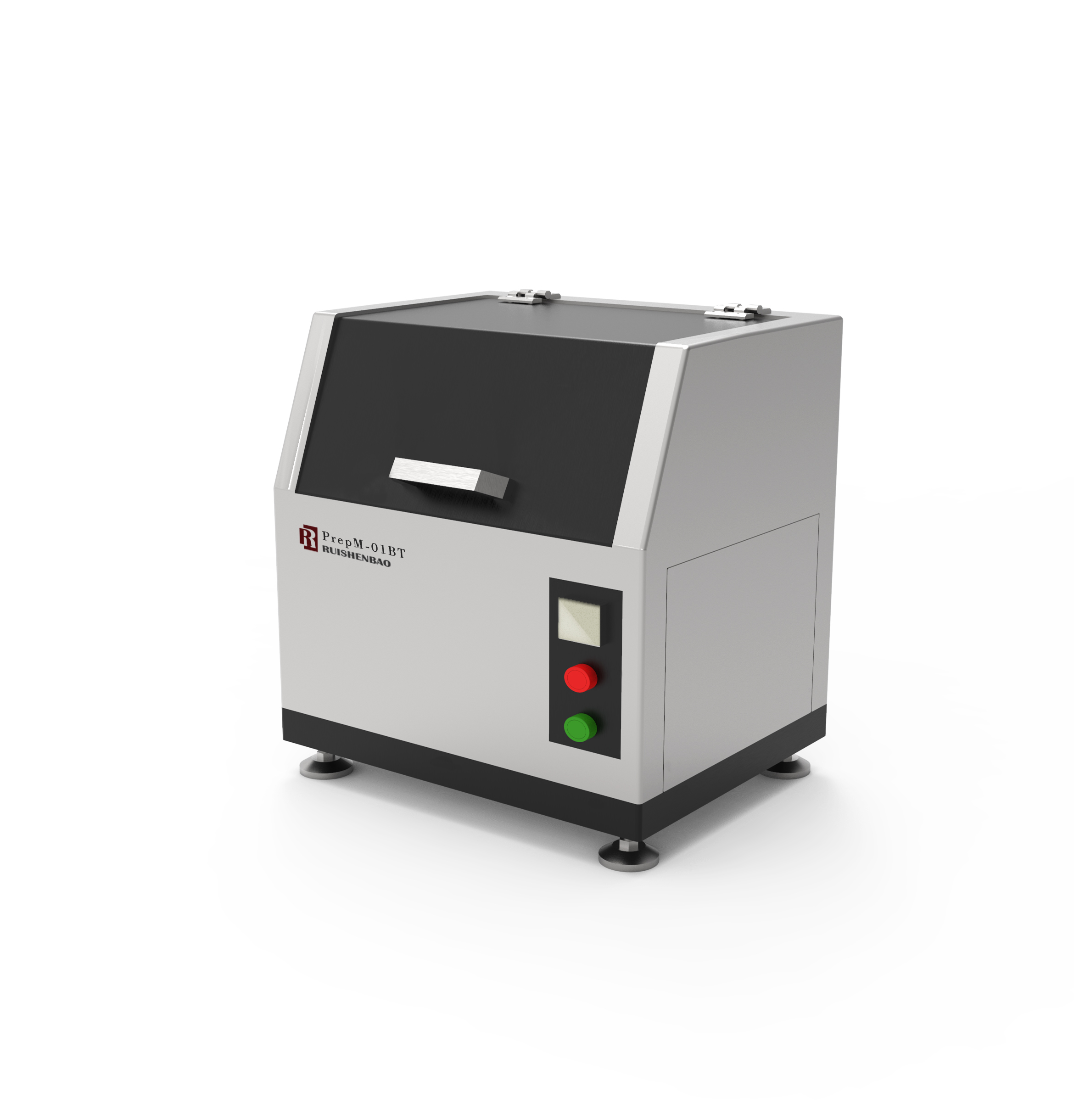

Desktop vibratory disc mill PrepM-01BT

Desktop vibratory disc mill PrepM-01BT£¬ is a miniature tabletop grinding and grinding sample making equipment developed by Ruishenbao Analysis Technology (Shanghai) Co., LTD£¬suitable for different kinds of laboratory samples£¬such as hard brittleness and dry fiber and other materials such as sample grinding. The grinding tank is fixed on the vibration seat and driven by the vibration motor into circumferential vibration. Under the action of centrifugal force, the grinding tank produces extrusion, impact, friction and shear on the samples in the tank, and the samples are quickly and thoroughly ground. Meanwhile, the samples are uniformly mixed without loss of samples¡£The whole process was completed in a few minutes£¬After grinding, the sample particle size is uniform, which can well meet the requirements of XRF analysis on sample size and uniformity. In terms of the performance of the table grinding instrument, it has the advantages of vertical grinding mill, such as working efficiency, sample making performance and labor saving, etc., as well as the advantages of small size. It is well suited to the practical requirements of modern laboratories. The equipment is small in size and light in weight. It can be directly placed on the experimental bench for operation and easy to use. Advantage

1.efficient£ºEccentric vibration mechanism, with swinging block as vibration source, brings a strong grinding force to the grinding system, and with the use of grinding components, the sample grinding can be finished within 1-3 minutes .

2.stability£ºSpring suspension system, vertical support plus 8 direction side pull and eccentric mechanism cooperate to produce perfect horizontal circular vibration track.

3.safety£ºSafety pneumatic support safety protective door, door closing limit switch to ensure that the equipment is not closed or closed in place can not start grinding.

4.low noise£ºIt adopts low noise and noise reduction design, and decorates noise reduction materials in the grinding room, so as to isolate the noise generated in the working process of the grinding body inside the equipment and realize ultra-quiet operation.

5.small in size£ºReasonable layout and innovative design, less space, suitable for all kinds of laboratories

6.low-energy£ºLow energy consumption, no need for separate wiring, conventional power can be used requirements.

7.variety£ºOther material grinding components can be selected to meet the special requirements of different users.


Security
¡ö Application area


¡ö Technical parameter

Modle

PrepM-01BT

Running speed

960-3000rpm (no load)

Grinding box number

1

Power supply

AC220V/50Hz

Power

750W

Feed particle size

£¼10mm

discharging granularity

¡Ü75¦Ìm

material

Chromium steel/tungsten carbide/manganese steel/agate£¬Other materials can be customized

The size of the grinding box

50ml £¨standard£©£¬Other specifications are optional

Grinding amount

30%-50% effective volume of grinding box£¨It depends on the nature of the material£©

Size £¨L¡ÁW¡ÁH£©

395¡Á480¡Á625mm

Net weight

45Kg
